AEM Air Temp Sensor DTM-Style Kit. Includes 1/8" NPT Air Temperature Sensor with High Performance DTM-Style Connector, Aluminum Bung, Connector & Pins
AEM's Air Inlet Temperature Sensor Kits (AIT) senses the air temperature on the inlet side of the engine.
- Weatherproof connector
- Includes mating connector & pins
- Senses the air temperature on the inlet side of the engine
- Accuracy: < 1.5 °C / 2.7 °F
- Operating Temp: -20C to 150C / -4F to 302F
- Resistive Range (Ω): See Instructions
- Thermal Time Constant: < 15 sec. The time required for the sensor to achieve 63.2% of its steady state value when subjected to a step change in ambient temperature [Tc=(Tf-Ti)*63.2%+Ti]. Test medium: silicone oil
- Sensor Body Material: Brass
- Thread: 1/8" NPT
- Hex Size: 1/2"
- Installation Torque: 13.5Nm / 10 ft-lbs
- Weight: 10g
- Electrical Termination: Weatherproof High Performance DTM-Style connector. Includes Mating Connector, Pins & Wire Seals

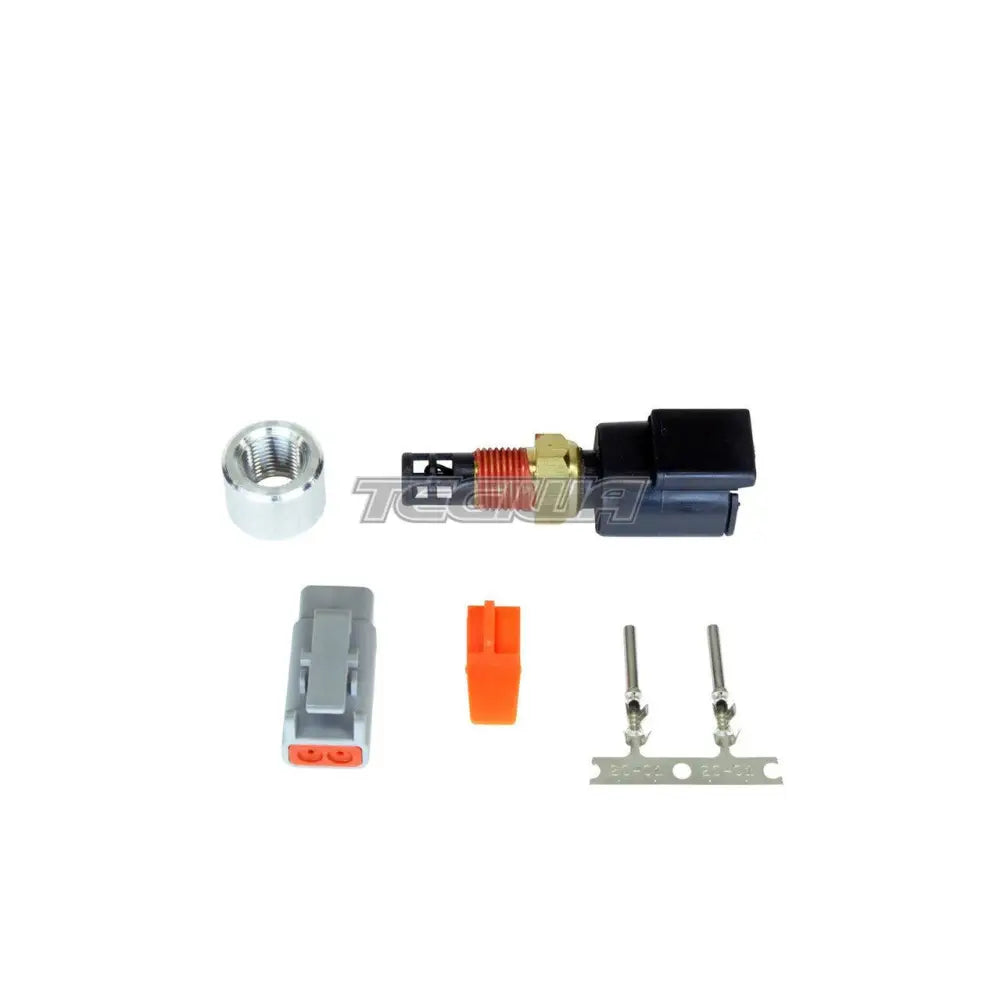

- Includes: Air Temp Sensor High Performance DTM-Style, 1/8" NPT Alumium Bung, Mating Connector, Pins & Wire Seals
