Details
TC1-HDG6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad, spring-centered race disc features a spring-center to properly damp torsional vibrations and resist failure under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 6-pad, spring-centered race disc, engagement is harsher, but shifting is faster. The 6-pad, spring-centered disc is recommended for larger clutch sizes to absorb more heat.
Feel:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Life:
Moderate friction life, extended by ACT's exclusive diaphragm design
Quality:
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommendation:
Recommended for high horsepower street or race use
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Feel:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Recommended Use:
Recommended for high horsepower street or race use

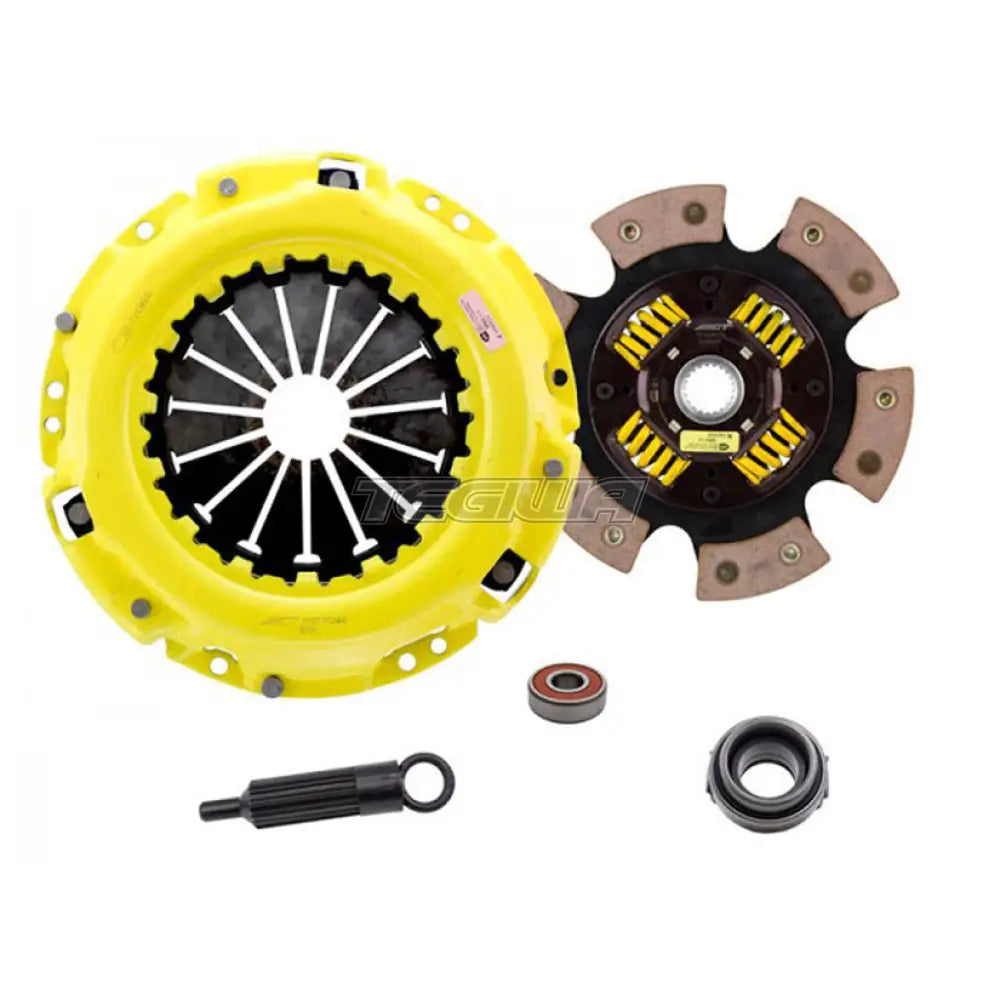

What's Included?
What's Included in this kit?
6212103 - 6 Pad Sprung Race Disc
ATK73 - Alignment Tool
RB371 - Release Bearing
T030 - P/PL Heavy Duty
* Required Fields
Torque Capacity:
413 Nm (305 ft/lbs) = 69% over standard/OE
Disc Type:
6 Pad Spring Centered Disc
Pressure Plate:
Heavy Duty Pressure Plate
