Details
TS2-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
Feel:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Life:
Moderate friction life, extended by ACT's exclusive diaphragm design
Quality:
Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommendation:
Recommended for high horsepower street or race use
Difference:
100% clamp load tested and dynamically computer balanced for smooth high RPM reliability
Feel:
Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle
Recommended Use:
Recommended for high horsepower street or race use

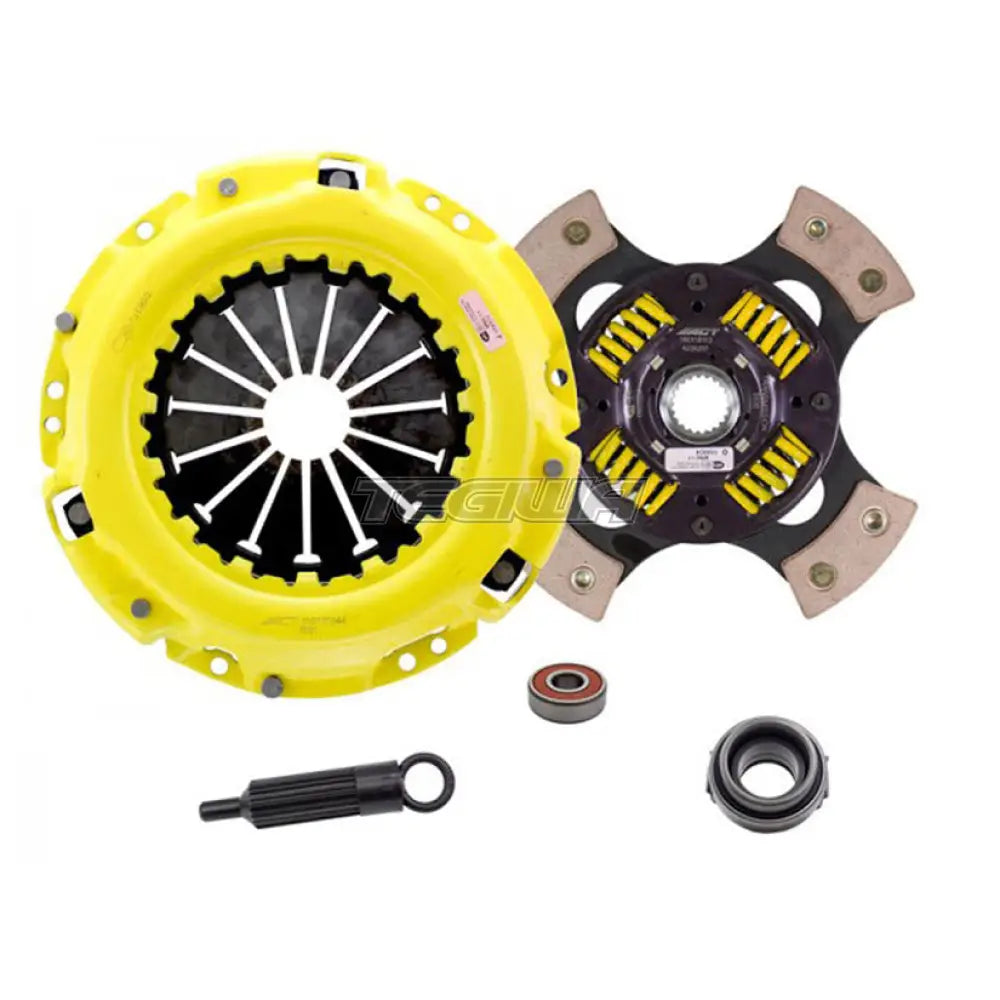

What's Included?
What's Included in this kit?
4240507 - 4 Pad Sprung Race Disc
AT11 - Alignment Tool
PB1004 - Pilot Bearing
RB419 - Release Bearing
T015 - P/PL Heavy Duty
* Required Fields
Torque Capacity:
772 Nm (570 ft/lbs) = 88% over standard/OE
Disc Type:
4 Pad Spring Centered Disc
Pressure Plate:
Heavy Duty Pressure Plate
